Mixer Assembly
Carburator

Fairbanks Morse Z aka "Dish Pan"
1 1/2 hp at 500 RPM

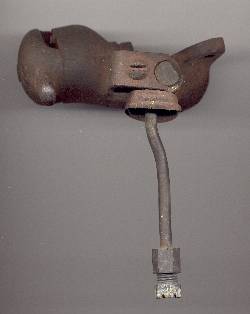

Before                                                                    After








1

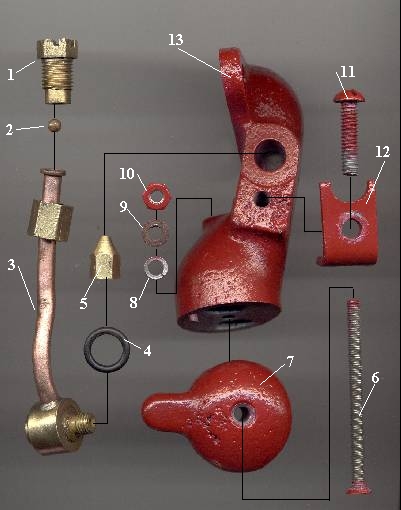

 Check Valve and Screen Filter
2
 Check Ball
3
 Pick Up Tube and Jet Mount
4
 O Ring (make sure it is fuel proof)
5
 Jet
6
 10-32 Flat Head Machine Screw
7
 Air Regulator (choke)
8
 10-32 Lock Washer
9
 Spacer
10 10-32 Nut
11  Round Head Machine Screw
12 Mounting Bracket (holds jet mount on mixer)
13 Mixer Body
